Personal Electric Scooter Case Study
![undefined](https://cdn.sanity.io/images/r2kqk28y/staging/e967391fd5d4f761bdf2bfd15a0d28ed534bbec5-800x800.jpg?w=3840&q=75&fit=clip&auto=format)
![undefined](https://cdn.sanity.io/images/r2kqk28y/staging/0efe5c0cee4df93410fc4d5227143b694c26d684-360x280.jpg?w=3840&q=75&fit=clip&auto=format)
Our design far exceeded the prismatic cell options the company had previously evaluated. Each vehicle utilizes 2 custom modules, and is now delivering a reliable power source for up to 24 miles on a single charge.
An innovative and leading manufacturer of electric personal vehicles contacted Valence (now part of Lithion Battery) to develop a robust power source for their vehicle. Their requirements for the battery included:
- The technology must be a safe phosphate-type
- High cycle life and light battery
- Must be able to handle high vibration
- Must handle violent jolts and jumps
- Custom battery system with BMS built-in
- Module design must be strong
- Fast and safe recharging
Features & Benefits

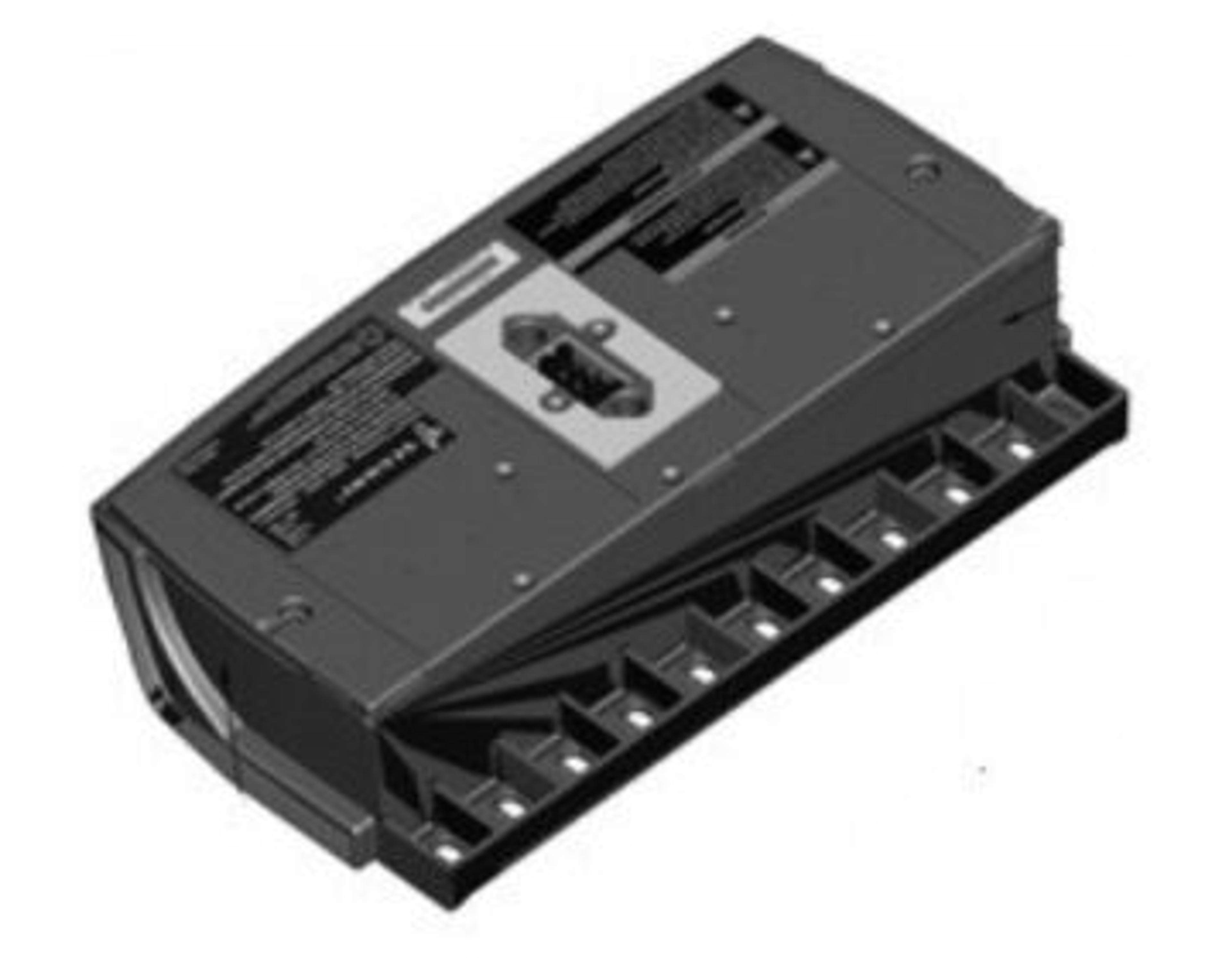

Module
- High cycle life (4500 cycles to 80% DOD as a module) for low total cost of ownership
- Twice the runtime as the previous NiMH battery
- Reliable electronics and firmware
- Inherently safe lithium ion chemistry
- Robust mechanical design
- Flame retardant plastics to UL-94V0
Battery Pack
- Paralleled for safety redundancy
- Internal Battery Management System (BMS) communicates with vehicle
- Automatic protection and balancing by BMS
Technical Specifications
- Nominal Voltage: 73.6 V
- Nominal Capacity (C/5, 23°C): 5.6 Ah, 412 Wh
- Weight (approx.) for 2 module system: 10.3 kg / 22.7 lbs total
- Dimension incl. Terminals WxLxH: 191.15 mm x 358.89 mm x 66.6 mm
