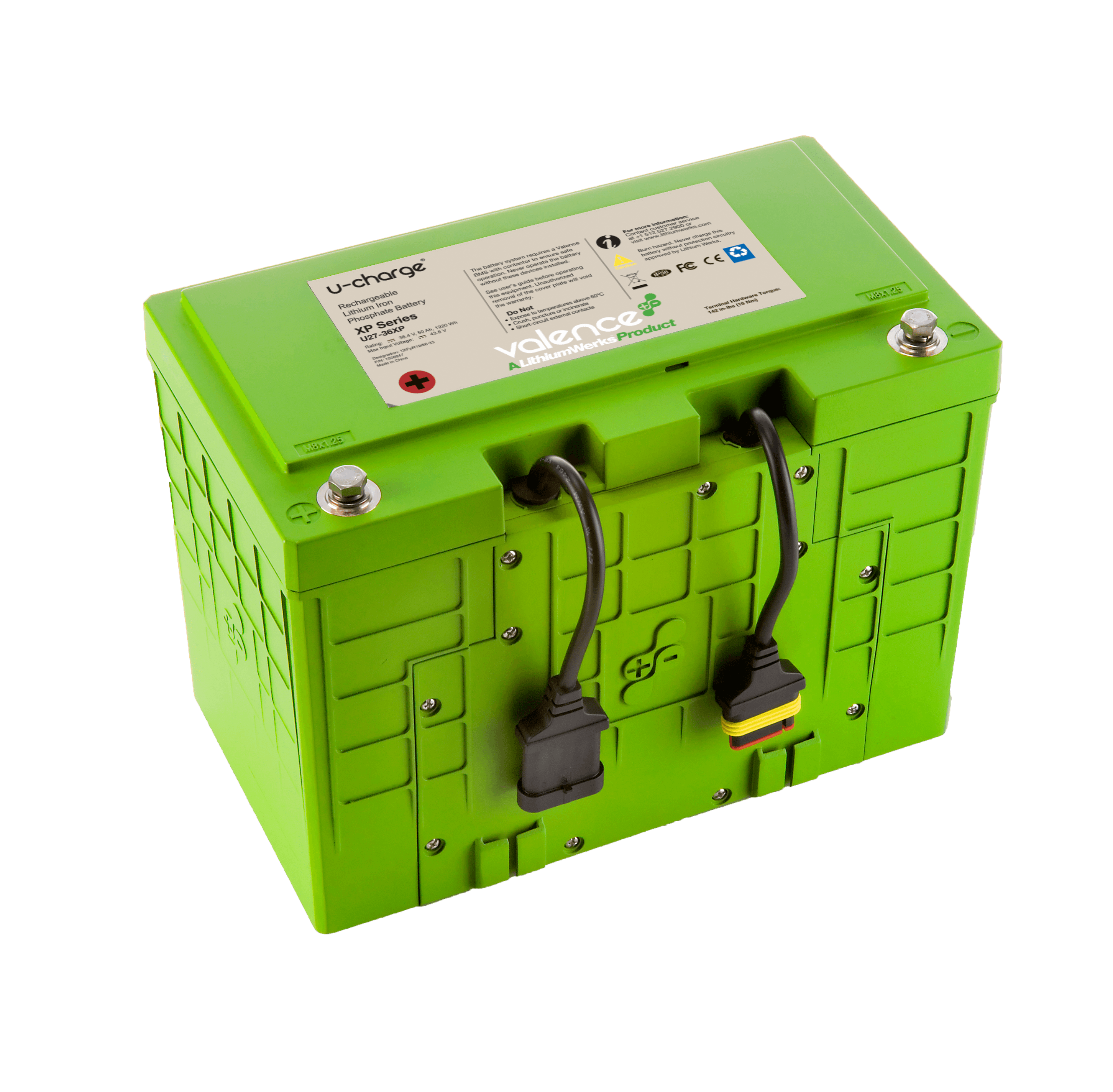

U27-12XP
The U27-12XP is a high-performance, 12 volt battery, built on a patented Lithium Iron Phosphate chemistry platform providing over 1.8 kWh.
Dimensions (mm): 225 x 172 x 360 | (H x W x L)
Dimensions (inch): 8.86 x 6.77 x 12.0 | (H x W x L)
12.8 V | 144 Ah | 19.2 kg | PN# 1008773
Certifications
UL 2580 (pending) | UL 1642 (cells) | IEC 62619 (pending) | FCC Class B, CE | UN 38.3
Shipping Classifications
UN 3480 | Class 9
features
![undefined](https://cdn.sanity.io/images/r2kqk28y/staging/128c54ddfd0bcd76ee830d6471f0b0b402b45ac2-696x439.png?w=3840&q=75&fit=clip&auto=format)
- >4000 cycles at 80% DOD
- Create systems 12 - 1000 V
- Series and/or parallel operation
- Automatic cell monitoring & balancing
- Temperature monitoring of cells
- Rugged mechanical design
- Thread locking feature
- Footprint of Group 27 lead acid case
- Maintenance-free
- No hydrogen generation or gassing
